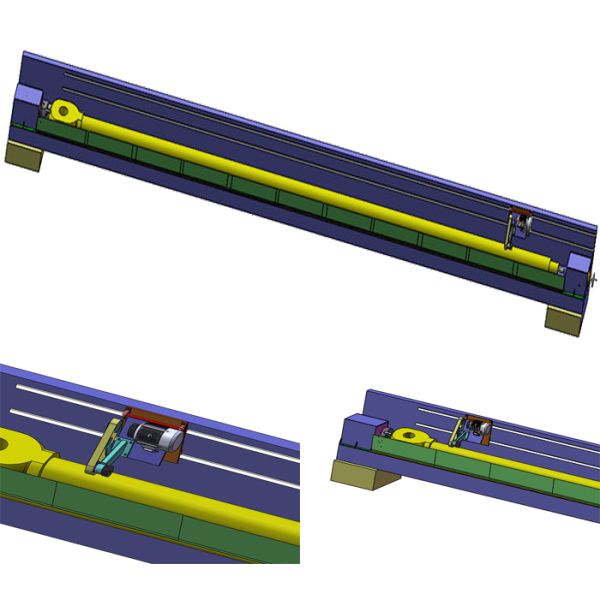

Trancar Industries Model TCM-WP automatic grinding machine is design for steel hydraulic cylinder chromed rod exterior surface grinding linishing,Beside for rod surface polishing,its also could for steel cylinder pipe solid rod products
surface grinding,such as it could polish steel tube pipe,Round Solid bar,hydraulic cylinder exterior surface in mechanical way.
TCM-WP rod grinding machine equip with double variable frequency grinding motors both of them power is 7.5 KW.Both grinding wheels and abrasive sanding belts are available for this type automatic polishing machine.It's widely used in the fields of pharmaceutical industry,medical industry,food industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.
Steel hydraulic cylinder rod piston rod automatic grinding linishing machine main parameter:
| Normal configuration(customer design acceptable) |
| Steel metal Pipe size | Max.Diameter | 40-800 mm |
| Thickness | 3-10 mm |
| Length | ≦15,000 mm |
| Machine Dimension | (L W H) 14500*1200*1200 mm |
| Pipe Roller Max.Loading capacity | 1 Ton / 2 Ton / 5 Ton / 7Ton for options |
| Polishing Precision | Surface roughness(Ra) | <=0.25μm |
| Production Efficiency | Polishing working speed | 6~12 m2/h |
| Input total Power | 22 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Machine Weight | / | 3800kg |
| Color | Grey/Green/Blue/Red/Yellow Custom design |
| Suitable Polishing Materials | Abrasive sanding belts,grinding wheels.
(flap/cloth/ emery/Nylon wheel etc) |
| For option | Water cooling system is available during polishing. |
Packaging and delivery:
Standard Export package
1,Plywood case+PE Film+ Carton protection.
2,Based on your order requirements.
Trancar Industries other polishing machinery recommend:
Beside pipe tube exterior surface automatic polishing machine,there are
Tank shell & head automatic polishing machine
Pipe tube inside surface grinding equipment
Wire rod surface automatic linishing machine
Welded joint planishing equipments etc
Contact Trancar Industries for more steel automatic polishing solutions & machines.
